| Wire diameter: | 5-12 mm |
| Max.mesh width: | 2500 mm |
| Welding speed: | 0-50 times/min |

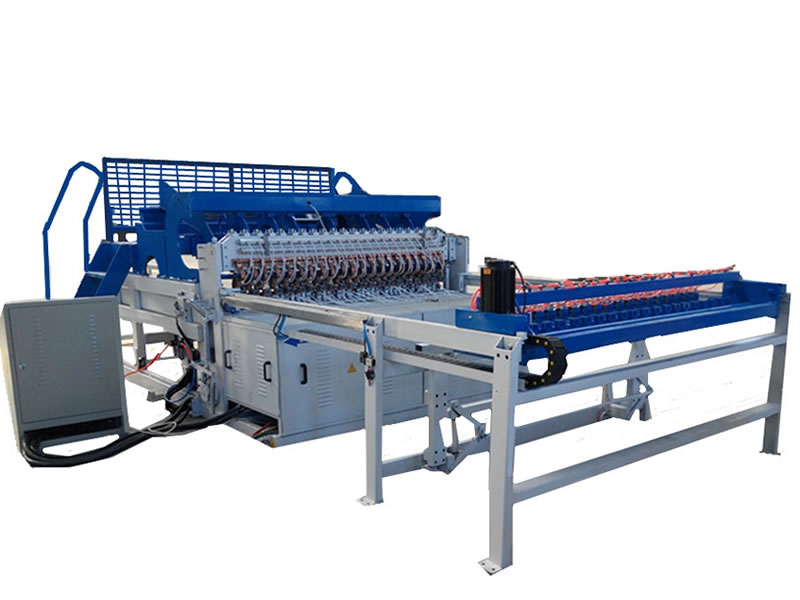

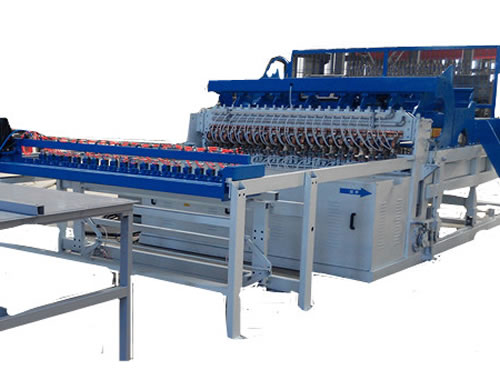

MODEL:SN-GW-2500A12
Performance characteristics:

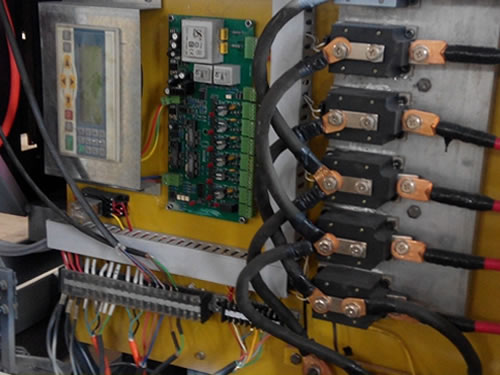

• This reinforcing mesh welding machine adopts synchronous control technique,welding time and sub-control welding is composed of PLC program system.
• Touch screen and keyboard input panel forms make operation more intelling and reasonable.
• New and high efficiency of welding machine transformer expands welding wire diameter scope
• Mesh drawing system is controlled by stepping motor which improved the precision of mesh opening size,meanwhile the longitudinal and transversal spacing are adjustable.
• The cross wire feeding is automatic and derived by step motor,which makes the cross wire alining more accurate and fast.
• The line wire and the weft wire are pre-straighte and pre-cut.
Reinforcing mesh welding machine parameter:
| Wire diameter | 5.0-12.0(mm) | Rated voltage | 380V 50Hz(Customized) |
| Welding aperture | 100*100-300*300(mm) | Transformer | 13x150KVA |
| Welding width | 2500(mm) | Welding speed | 0-50 times/min |
| Number of electrodes | 26 | Overall dimension | 20000*3600*2500(mm) |
| Nunber of electrodes | 26 |
| Max.mesh width | 2500mm |

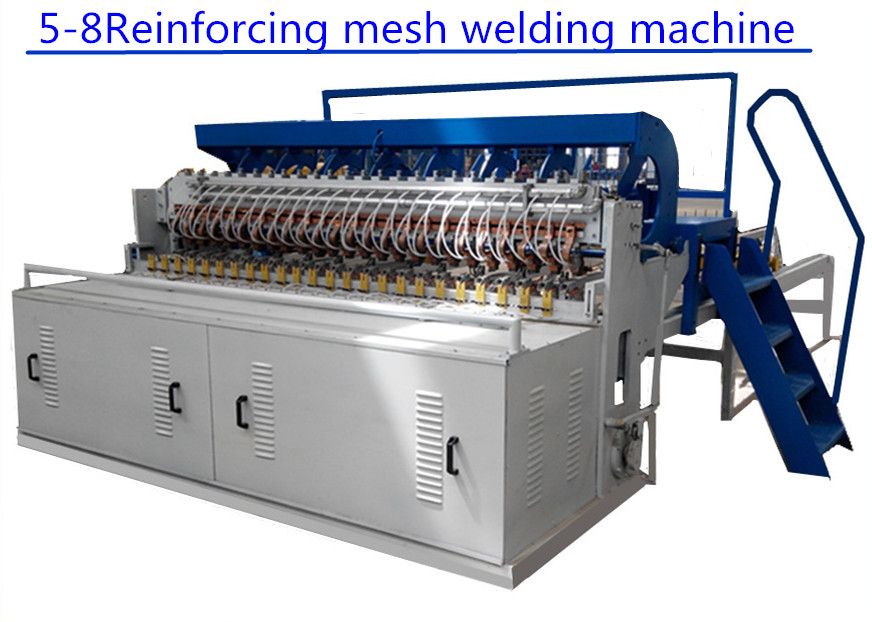

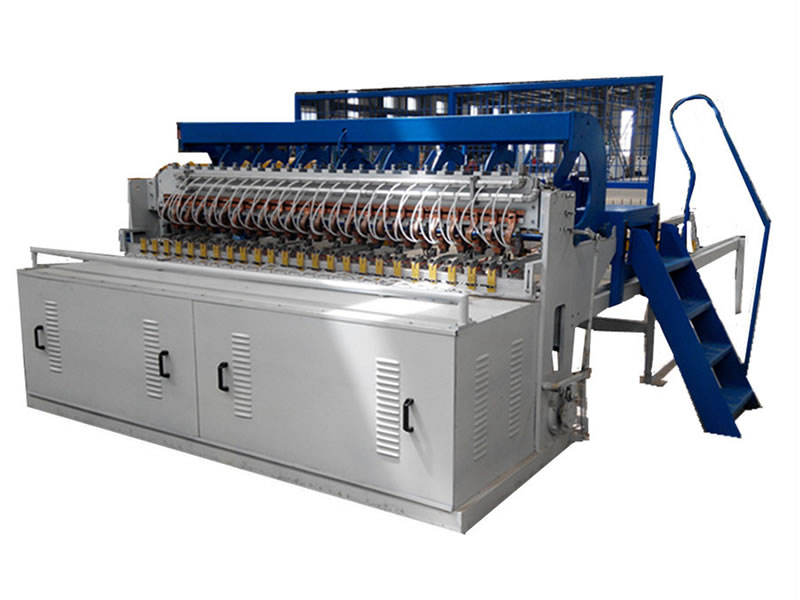

| Wire diameter | 5-8 (mm) |
| Product length | 3-12(m) |
| Cross wire space | 100-300(mm) |
| Line wire space | 100-300(mm) |
| Electric capacity | 150kva |
| Work speed | 0-50 times/min |
| Control system | PLC programmable controller |
| Number of electrodes | 26 |
| Max.mesh width | 2500 |

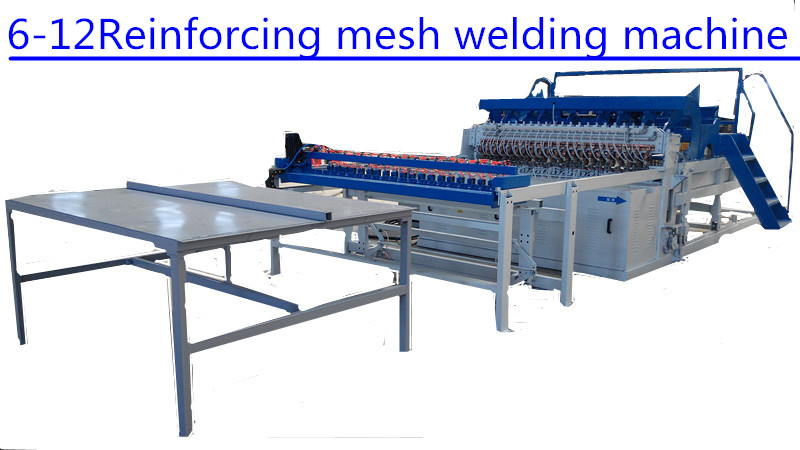

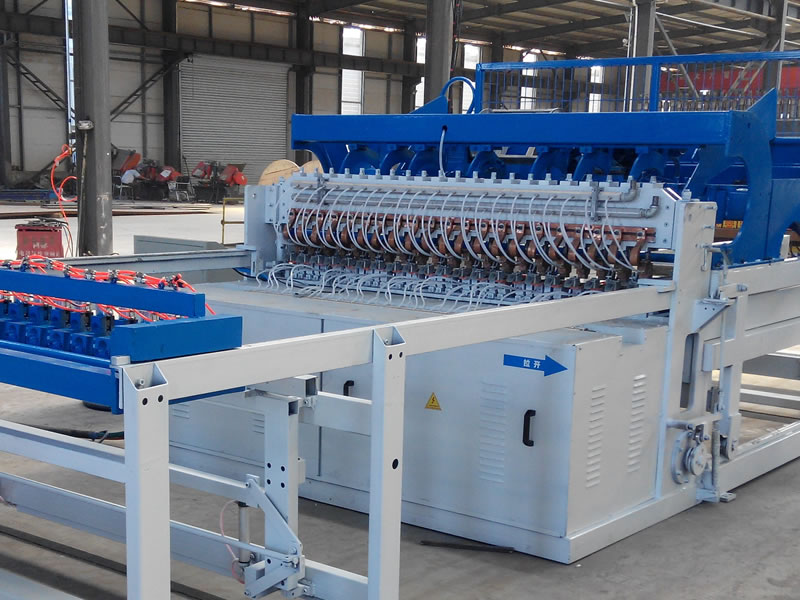

| Wire diameter | 6-12mm |
| Product length | 3-12m |
| Cross wire space | 100-300mm |
| Line wire space | 100-300mm |
| Electric capacity | 150kva |
| Work speed | 0-50times/min |
| Control system | PLC programmable controller |
Conventional packaging
1. The main machine and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
Application:
Reinforcing mesh welding machine can be used for producing high-level construction and bridge mesh, high-way reinforce mesh, construction reinforce mesh, floor pouring mesh.
