| Wire diameter: | 2.5-5.0mm |
| Welding width: | 2500mm standard,other size can be ordered. |
| Work speed: | 0-60times/min |
| Control system: | PLC programmable controller |

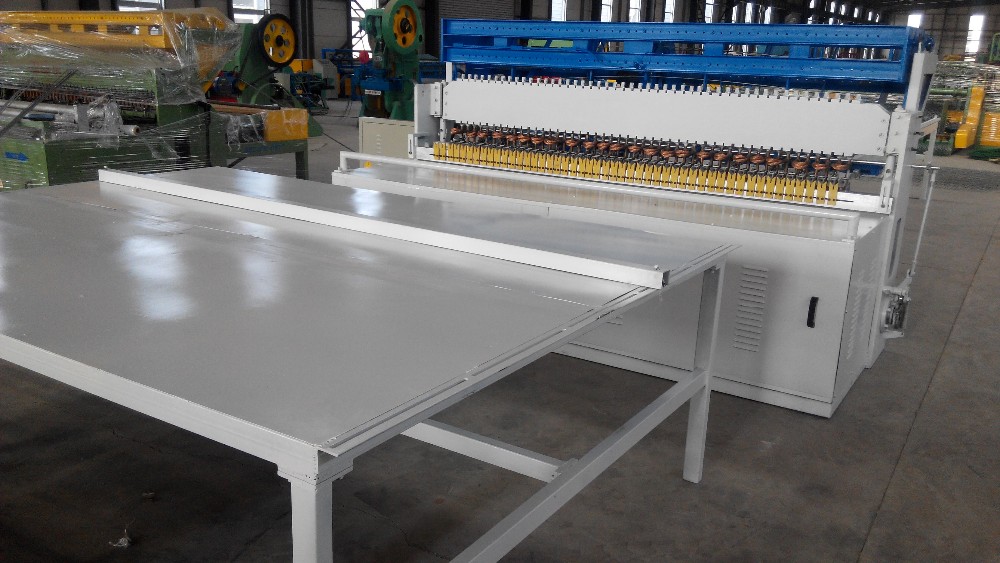

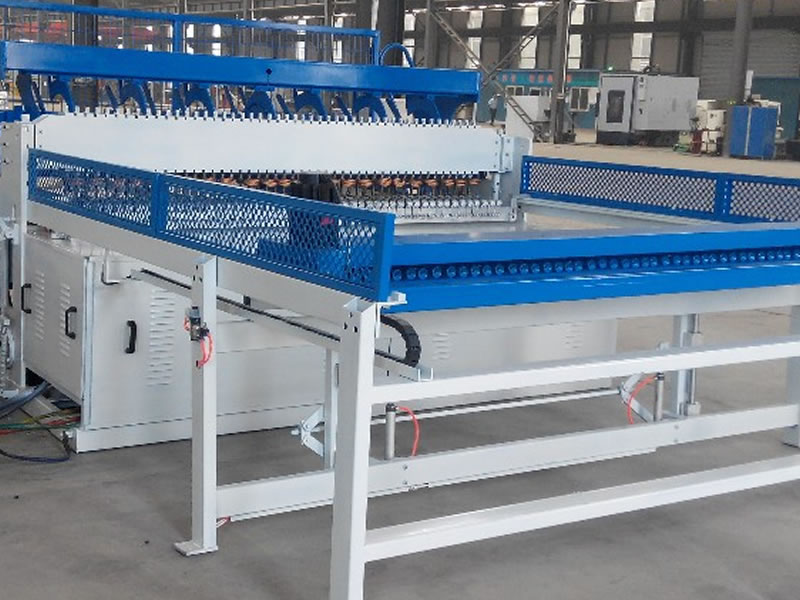

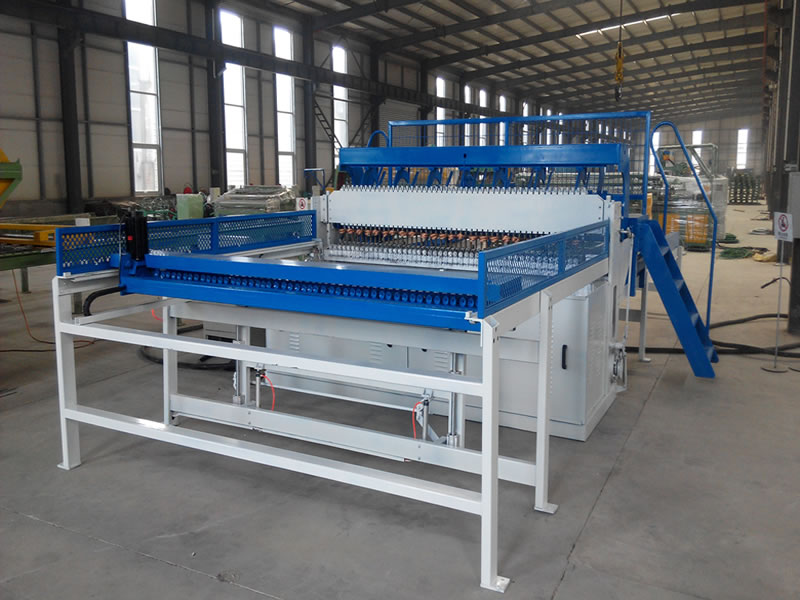

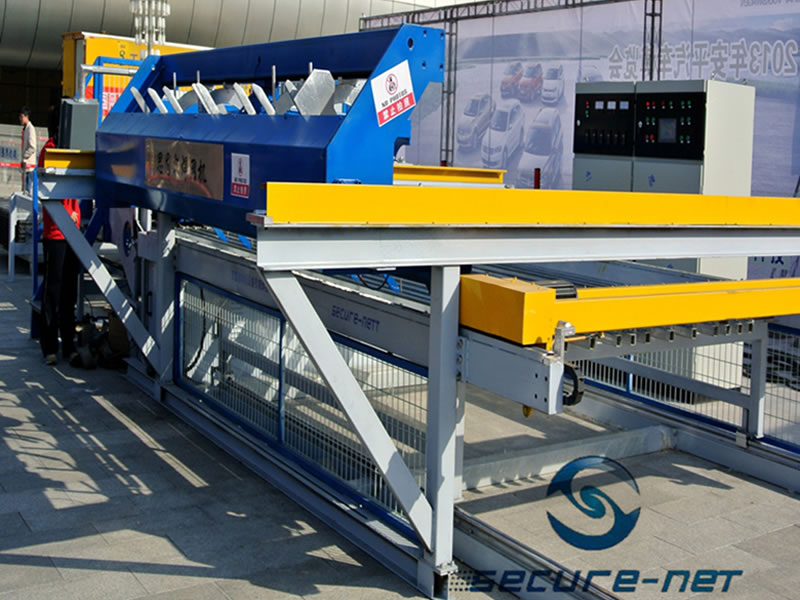

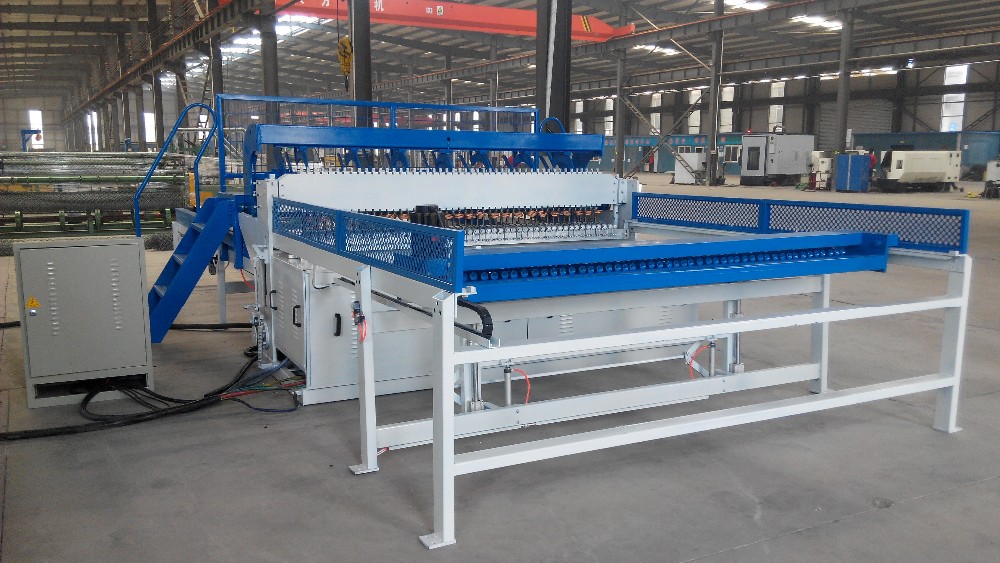

MODEL:SN-HL-2500B

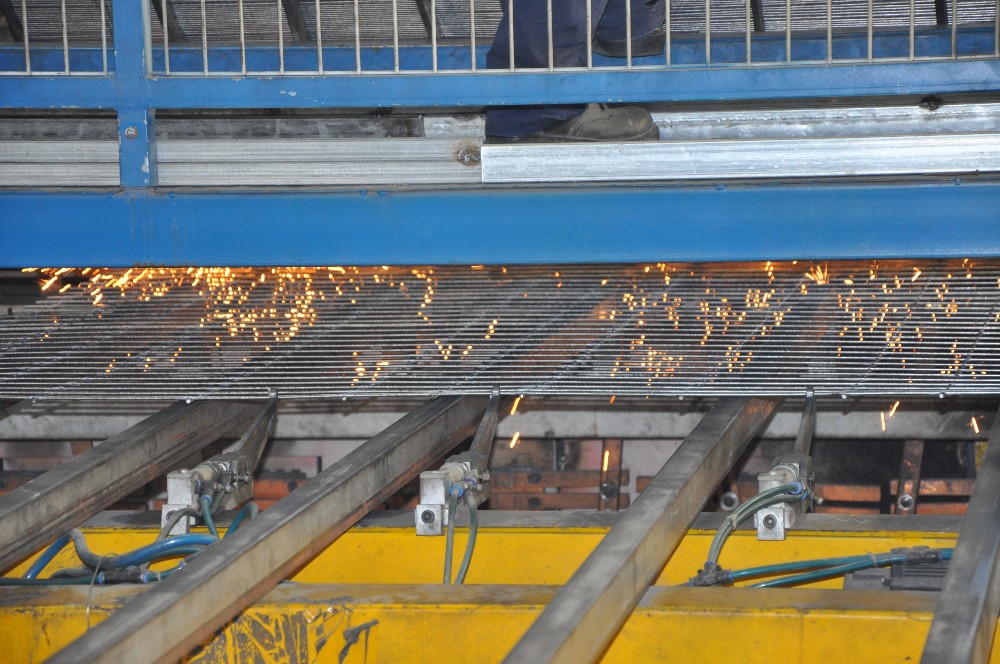

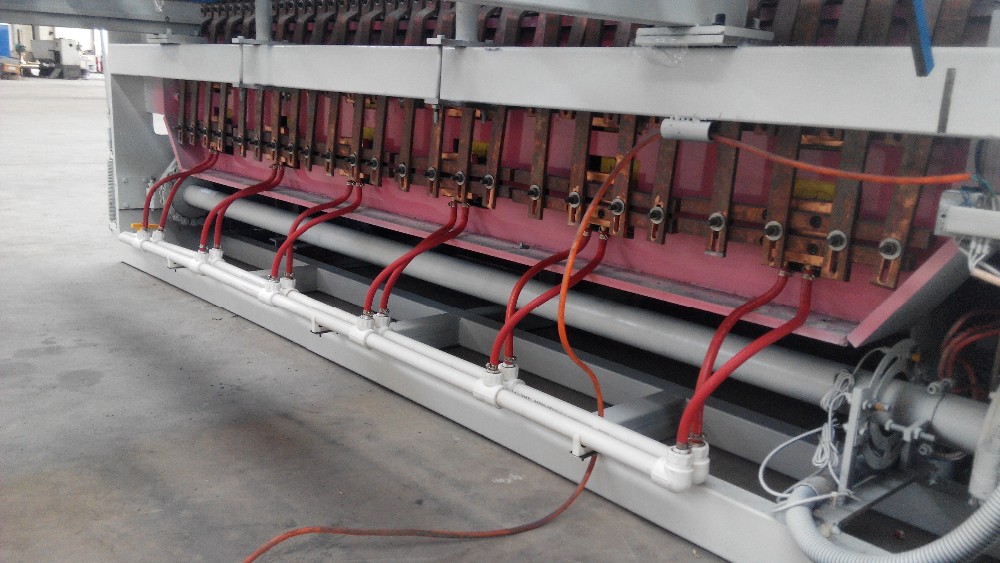

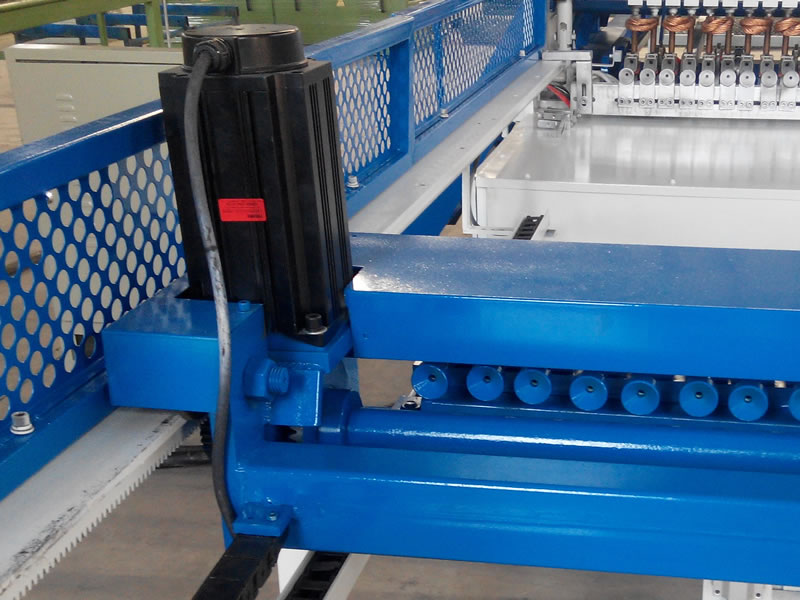

This machine adopts synchronous control technique, welding time and sub-control welding is composed of PLC program system. Touch screen and keyboard input panel forms make operation more intelling and reasonable. The biggest advantage of this system is that more than 30 kinds of different mesh size can be welded on the same panel. New and high efficiency of welding machine transformer expands welding wire diameter scope. Easy handing, high flexibility and high working efficiency achieve a perfect welding machine.
The main parameter:
| Wire diameter | 2.5-5.0mm | Rated voltage | 380V 50HZ(Customized) |
| Welding aperture | 50*50-300*300mm | Welding width | 2500mm standard |

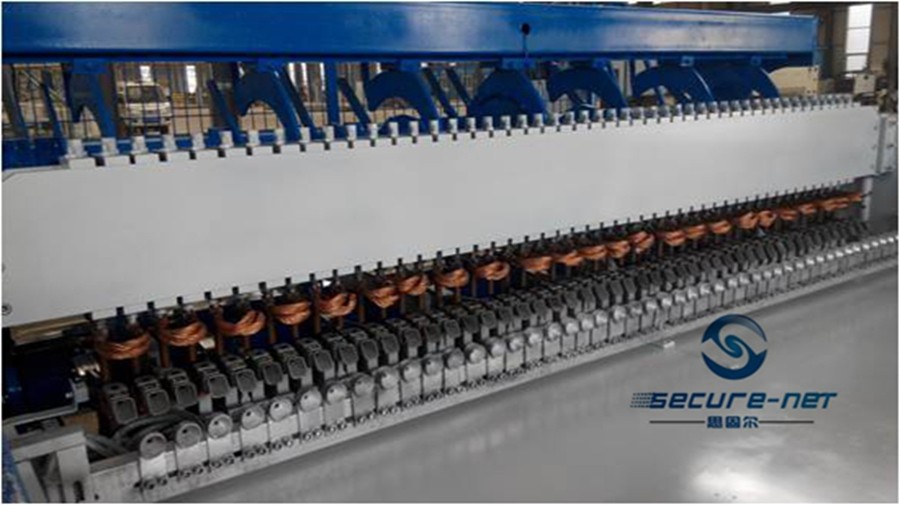

| Number of electrodes | 48(adjustable) | Transformer | 6x100KVA |
| Welding speed | 0-80times/m | Pressure mode | Strong spring pressure |
| Machine weight | 3500kgs | Overall dimesion | 9000*3200*1700mm |

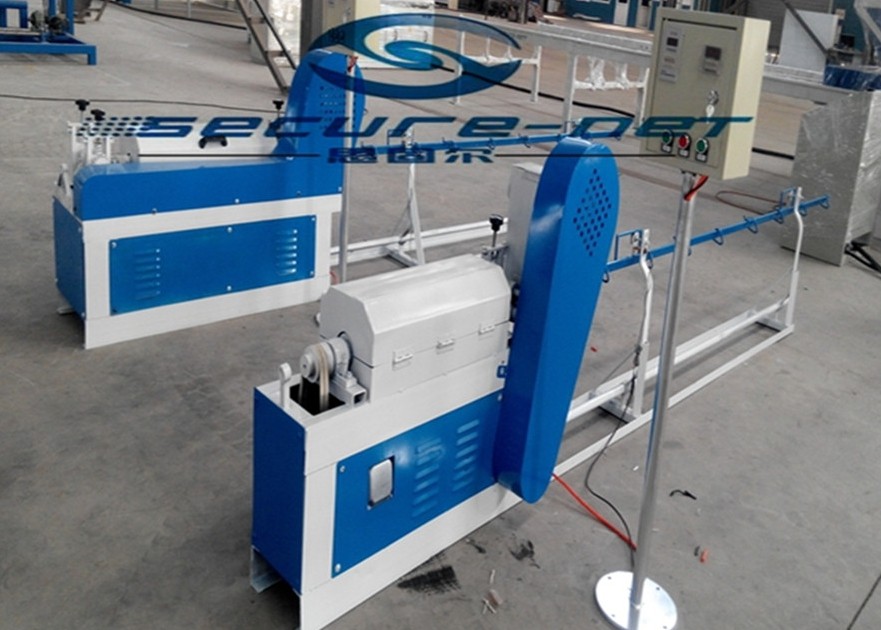

Auxiliary equipment
Application:

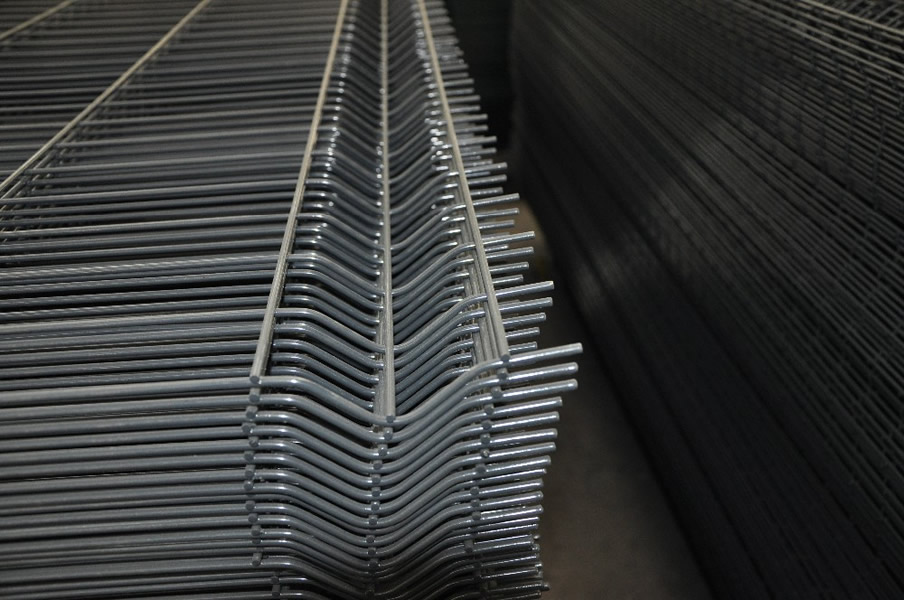

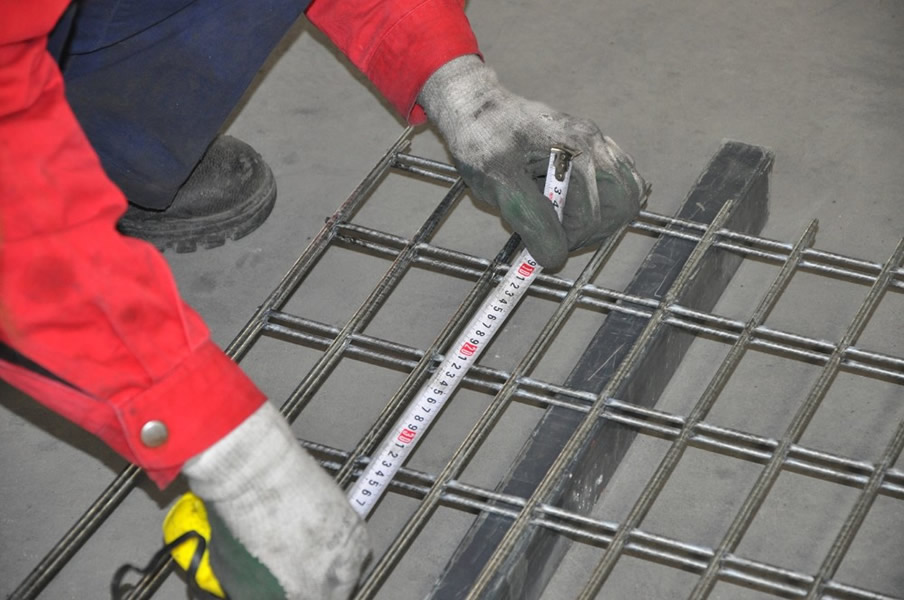

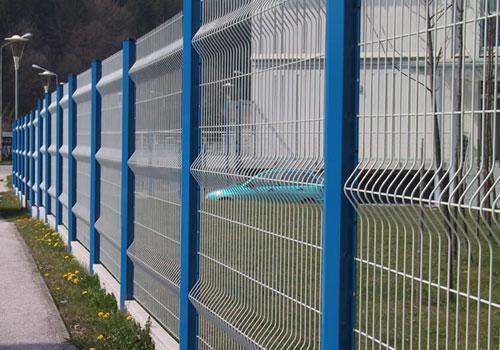

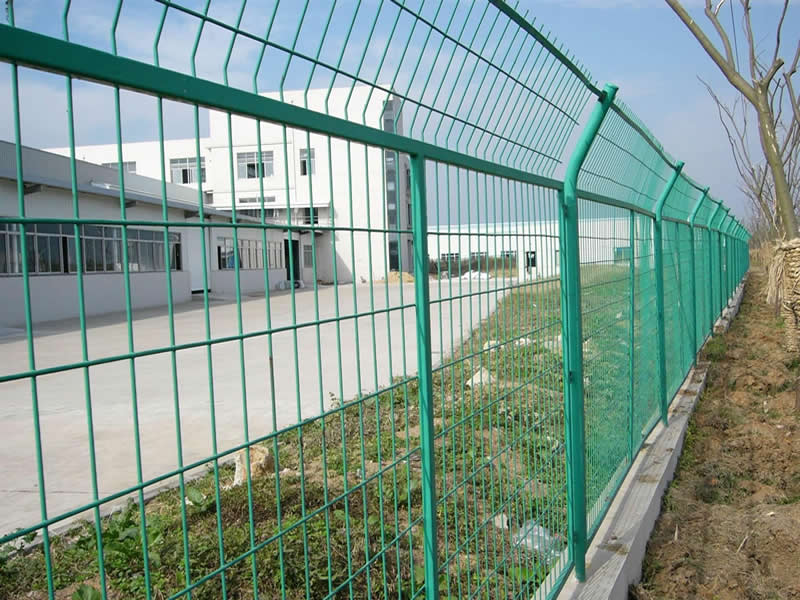

Wire mesh panel for fence and casting building roof.
