| Wire diameter: | 1.0-2.2mm/2.5mm |
| Mesh width: | 4 feet, 5 feet, 6 feet, 7feet |
| Production Capacity: | 80 rows/min |
MODEL:SN-DH

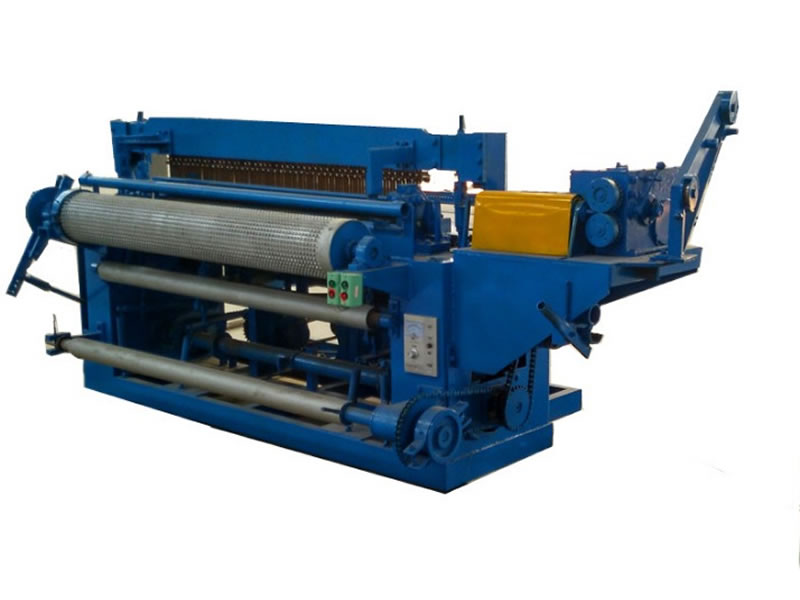

Product Description
Both line wire and cross wire can be feeded from wire coils automatically.

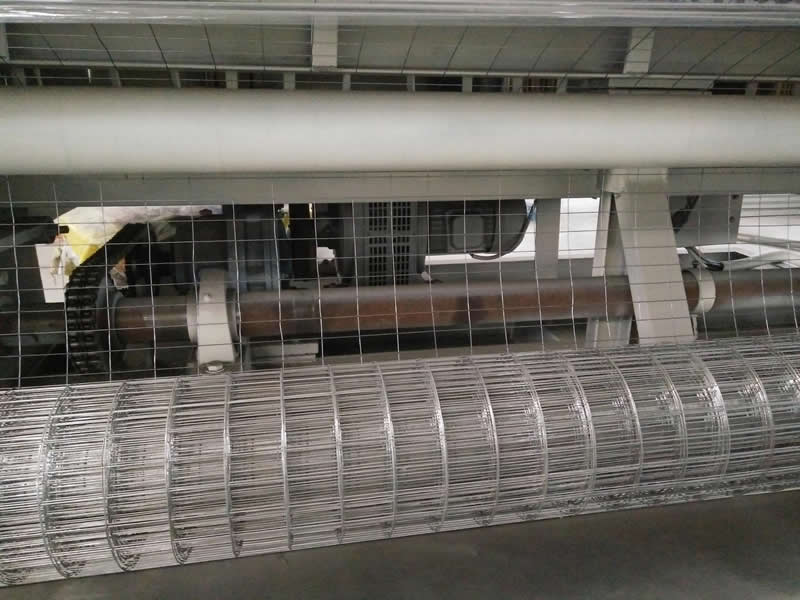

The welded mesh machine in roll raw material is applicable for low carbon steel wire or stainless steel wire .
The welded mesh machine in roll has advantage such as design reasonable ,low noise ,more stable ,easy operation and electromagnetism adjustable speed for welding.
The welded mesh machine in roll mesh size is precise and the machine can be set the width and length according to customer's requirement.

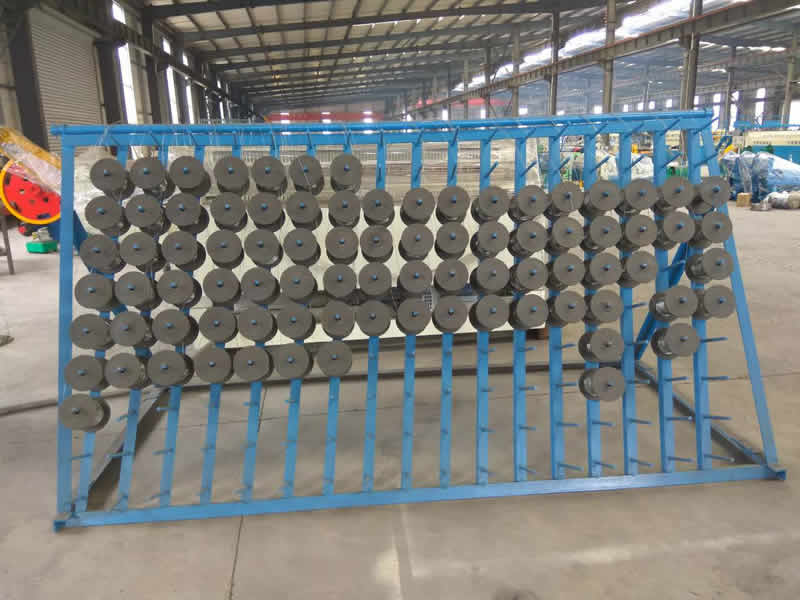

The welded mesh machine in roll production line consists of main welding machine ,electrical control cabinet,reparing table ,repairing machine ,bracket for longitude wires,bobbin machine and bobbins.

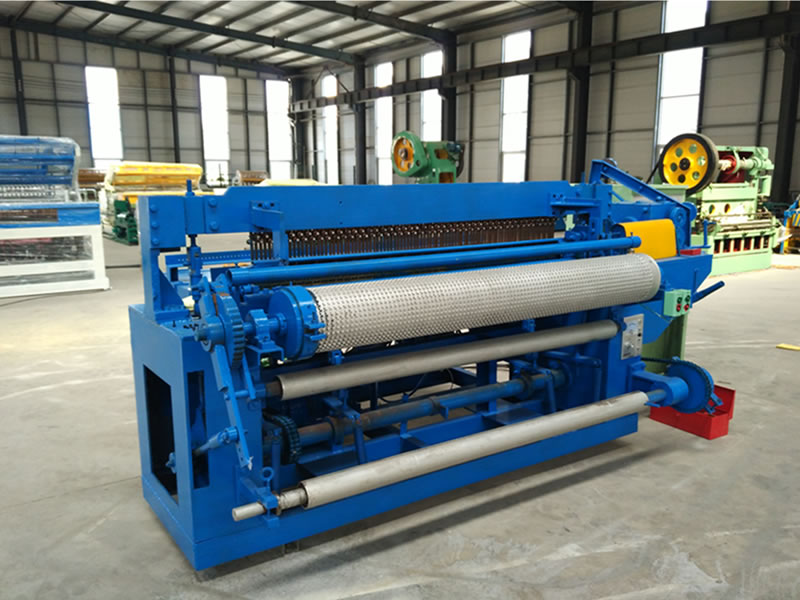

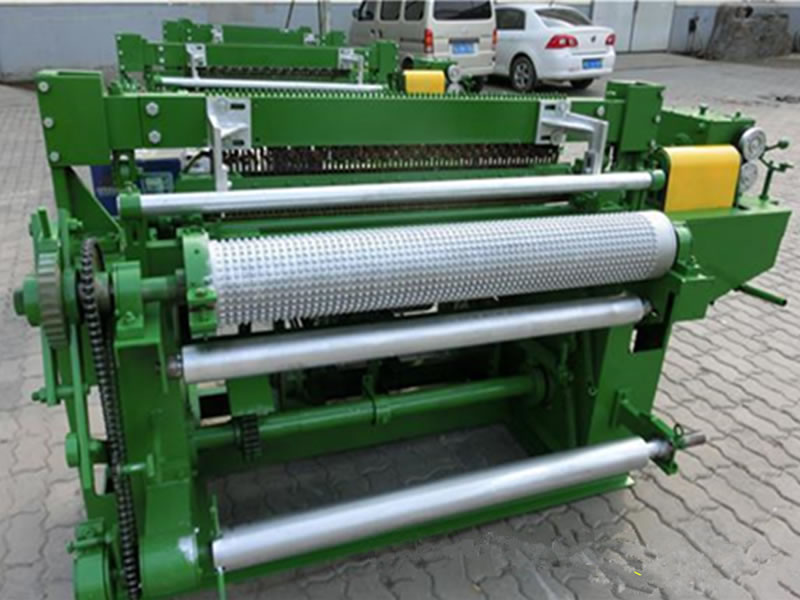

Characteristics of automatic welded wire mesh grid roll making machine
Line wire and cross wire are both feeded from wire coils automatically. A special positioning device adopted, the full automatic electrowelding mesh machine can achieve accurate wire feeding, uniform mesh, faster welding speed, stable wire feeding and reliable wire length. Synchronousclutch wire feeding mechanism used instead of intermittent drive, the machine is low-noisy and it has low mechanical failure rate. Meanwhile, the improved new machine is more reasonable designed and easy to operate. With stable performance, machine' life time is also prolonged. Besides saving line wire materials, welding speed and mesh quality are both improved.
Main parameter of automatic welded wire mesh grid roll making machine
| Type 1 | Type 2 | Type 3 | Type 4 | |
| Wire diameter | 0.4-0.65mm | 0.6-1.4mm | 0.6-1.8mm | 1.2-2.5mm |
| Net width | 914.4mm; 1000mm | 1219mm(4feet); 1524mm(5feet) | 1219mm(4feet); 1524mm(5feet) | 1919.2mm;1524mm; 1828.8mm;2133.6mm |
| Mesh | 6.35-12.7mm(1/4″-1/2″) | 19.05mm(3/4″) | 12.7-110.6mm(1/2″-4″) | 25.4-110.6mm(1″-4″) |
| Voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Motor power | 2.2Kw | 2.2Kw | 2.2Kw | 4.0Kw |
| Welding speed | 75 times/min | 120 times/min | 120 times/min | 80 times/min |
| Transformers | 50Kva*3 | 65Kva*5 | 65Kva*4/65Kva*5 | 65Kva*4/65Kva*5 |
| Overall dimension | 2.3*1.3*1.4m | 3.0*1.75*1.65m | 2.0*1.50*1.6m 3.0*1.75*1.65m | 2.0*1.50*1.6m 3.0*1.75*1.65m |
| Weight | 1.5 T | 2.5 T | 2.0 T;2.5 T | 2.0 T;2.5 T;3.0 T;3.5 T |
Application of automatic welded wire mesh grid roll making machine

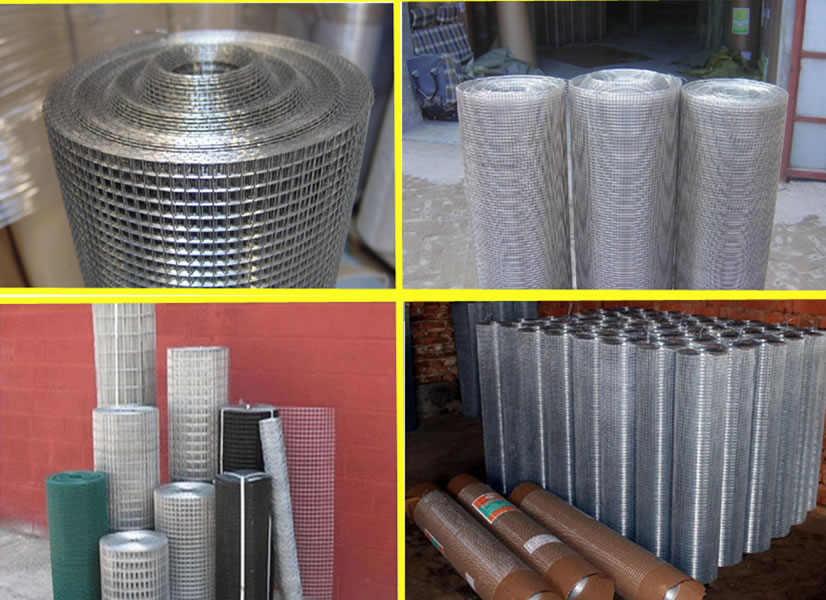

Automatic welded roll wire mesh making machine can be used to screen, corn, animal cage net, breeding net, net garden and building net.
Package of automatic welded wire mesh grid roll making machine
Automatic welded wire mesh grid roll making machine is packaged by plastic film and wooden box.
1. The main machine is usually packaged by plastic film and fixed in the container by steel wire rope to make it stable.
2. The spare parts and control cabinet are loaded in wooden box.
3. One 20 feet or 40 feet container needed.
